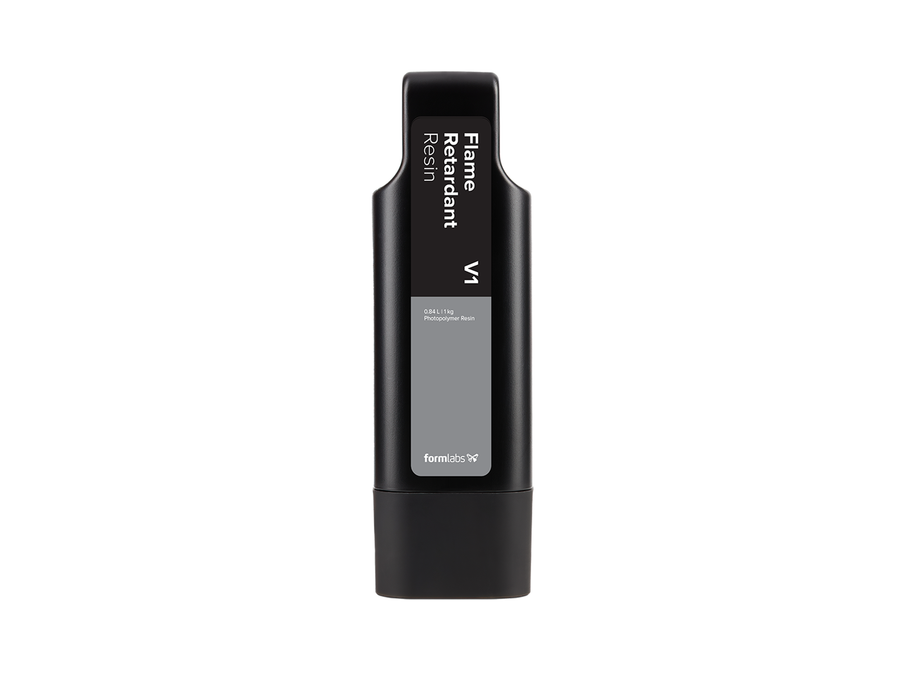

Formlabs Formlabs Flame Retardant Resin - 1kg (0.84L) for Form 4
Formlabs Flame Retardant Resin, certified by UL 94 Blue Card, is ideal for producing durable, self-extinguishing parts with low smoke toxicity. It features excellent heat and creep resistance, making it suitable for aerospace, automotive, and industrial applications. The resin ensures detailed, high-quality finishes. Key properties include 41 MPa tensile strength, 3.1 GPa tensile modulus, and 75 MPa flexural strength.
- UL 94 Blue Card certified for safety
- Ideal for high-temperature, ignition-prone environments
- Superior surface finish, mimics injection molding
- Cartridge compatible with Form 4 3D printers
| List Price: | $249.00 |
|---|---|
| Price: | $249.00 |
| Price: | $... |
| Order Now: | Processed Immediately Free U.S. Shipping |
Flame Retardant Resin
CERTIFIED SAFE
Ensure safety and quality with our Flame Retardant Resin, certified for its self-extinguishing properties and low smoke toxicity. This UL 94 Blue Card approved resin is perfect for producing stiff, durable parts for high-risk environments, offering exceptional heat and creep resistance. Ideal for intricate designs in aerospace, automotive, and industrial applications, it combines certified protection with outstanding long-term resilience.
Key Features of the Formlabs Flame Retardant V1 Resin:
- Cost & time-effectively produce self-extinguishing parts
- Self-extinguishing, halogen-free for enhanced protection
- UL 94 Blue Card certified for safety
- Enables detailed parts with isotropic, 25um XY resolution
- Superior surface finish, mimicking injection-molded parts
- Ideal for parts that will be in high-temperature or ignition-prone environments
| Engineering Application |
SLA Technology |
Stiff & Strong |
| 41 MPa Ultimate Tensile Strength |
3.1 GPa Tensile Modulus |
75 MPa Flexural Strength |
| COMPATIBILITY | ||
| Printer(s)* Form 4 / 4B Form 3L / 3BL Form 3+ / 3B+ Form 3 / 3B Form 2 |
Resin Tank(s) [RT] Form 4 / 4B RT Form 3L / 3BL RT V2 Form 3L / 3BL RT V1 Form 3 / 3B RT V2.1 Form 2 LT Tank |
Build Platform(s) [BP] Form 4 BP Flex Form 4 BP Form 3L BP 2L Form 3L BP Form 3 Stainless Steel BP Form 3 BP 2 Form 3 BP |
*The resin is compatible with these 3D printers. Please ensure you're selecting the correct cartridge compatibility at purchase as the Form 4 uses a different cartridge system from previous models. The listing you are currently on is for the Form 4.
For the Form 3 series / Form 2 compatible cartridges, click here.
What are the Material Properties of the Formlabs Flame Retardant Resin?
| Post-cured at 70ºC for 60 minutes |
Post-cured at 80ºC for 120 minutes |
|
| Heat Deflection Temperature 0.45 MPa |
94ºC | 111ºC |
| Tensile Modulus | 2.9 GPa | 3.1 GPa |
| Ultimate Tensile Strength | 38.5 MPa | 41.2 MPa |
| Elongation at Break | 0.094 | 0.071 |
| Notched Izod | 22.1 J/m | 22.4 J/m |
Download the Flame Retardant Resin Technical Data Sheet
Download the Formlabs Flame Retardant Resin Safety Data Sheet
 |
 |
|---|---|
| FORM WASH SETTINGS | FORM CURE SETTINGS |
| Duration | Duration |
| 10 min IPA or 15 min TPM | 60 min |
| Temperature | |
| 70°C | |
| Notes | Notes |
| If washing with TPM, use a quick water rinse after to ensure full removal of TPM. |
There are two post-curing options for FR Resin. Refer to the technical data sheet to understand how different options affect mechanical properties, and choose the post-cure option that is best suited to the intended application. To achieve the highest HDT of 111 °C @ 0.45 MPa: Post-cure parts in Form Cure for 120 min at 80 °C. For applications that do not require the maximum heat resistance but offer more toughness, post-cure parts in Form Cure for 60 min at 70 °C. |
